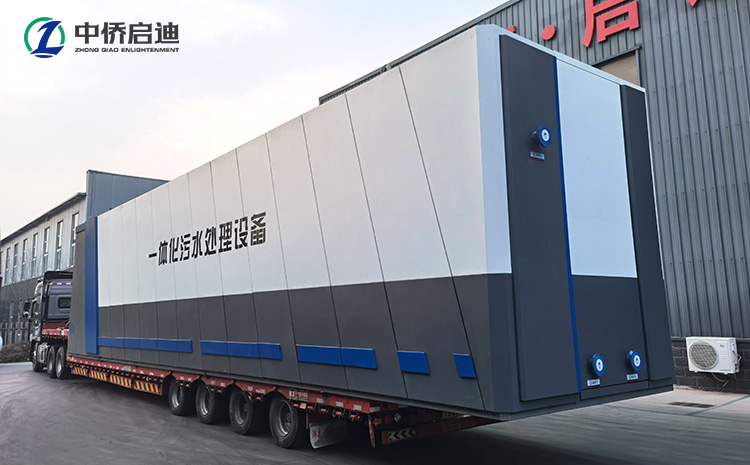

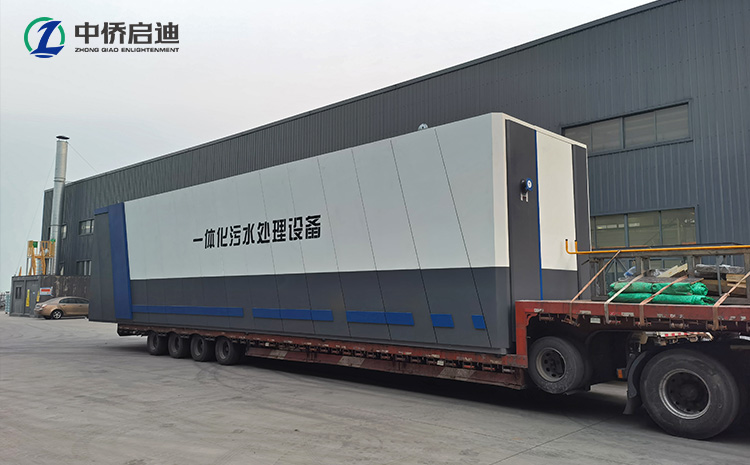

Zhongqiao Box Integrated Wastewater Treatment Equipment is primarily used in scenarios such as rural sewage treatment, hospitals, and small to medium-sized emergency sewage treatment plants. It is a skid-mounted equipment composed of a tank body, supporting electromechanical equipment, pipelines and accessories, and a control system. Utilizing AO and AO+MBR as the mainstream processes, it can be categorized into flat-panel, containerized, submarine-style, and decorative panel types based on the application scenario. The primary material is carbon steel, but it can also be made from specific materials like PP, stainless steel, or fiberglass.
The Zhongqiao Box was inherently designed for OEM production. It is a non-standard product where the process, material, and appearance can all be customized, thus offering practicality, stability, cost-effectiveness, and customer privacy. The Zhongqiao Box aims to provide value for both resellers/contractors and end-users. "Zhongqiao Box" is merely a temporary name; it may be rebranded with the client's name upon shipment, already creating value.
Components used in the Zhongqiao Box:
1. Flat panel aerators with a plug-in structure.
2. Galvanized threaded steel filler support frames and high-specific surface area biofilm carriers.
3. Self-made reinforced standard parts.
4. MBR modules utilize our proprietary encapsulation process, with each membrane cassette designed with removable rubber sleeves and a detachable membrane rack structure.
Software Support for Zhongqiao Box:
1. Mechanical analysis using Creo.
2. Chaotic IoT (Internet of Things).
Eight Advantages of the Control System in Zhongqiao Box:
-
The electrical control cabinet boasts an exterior design patent and comes with a complete set of product certification documents. Its appearance (including logo, color, and style) can be customized according to client requirements.
-
An anti-lost document holder is added to the cabinet door, providing a designated space for important materials such as certificates of compliance, inspection reports, and drawings.
-
Upper and lower ventilation louvers are installed on both sides of the cabinet to prevent overheating inside the electrical control box, thereby protecting the service life of electrical components.
-
The rear door features an anti-theft design.
-
Equipped with a linkage mechanism cabinet lock, offering enhanced aesthetics and practicality.
-
The bottom cable entry design includes removable partitions with pre-reserved cable ports, effectively preventing insects from entering the cabinet.
-
The cabinet door is equipped with waterproof channels and sealing strips, effectively preventing rainwater infiltration and achieving a higher protection rating for increased safety.
-
The base plate has a thickness of 2.0mm and utilizes an internal hidden fastening method for a more streamlined appearance.
Ten Reasons to Choose "Zhongqiao Box":
1. The blanking process uses laser cutting and shearing machines, ensuring precise equipment dimensions with minimal error, resulting in a more aesthetically pleasing product, fewer burrs on edges, and easier assembly and welding.
2. In-house processing of structural parts using large bending machines and assembly line operation.
3. Pipe connections are processed using pipe benders and threading machines, reducing welding steps, resulting in lower failure rates and a more aesthetically pleasing appearance.
4. Assembly line operation enables short production cycles and rapid deployment.
5. Use of high-standard components and first-brand supporting motor equipment ensures stable operation.
6. Scientific water distribution design significantly improves tank utilization.
7. 55-60 degree hopper design prevents sludge accumulation.
8. Reasonable pipeline layout design reduces head loss.
9. 12 years of production experience combined with professional structural design personnel ensure robust and reliable equipment structure, guaranteeing risk-free operation under any working condition.
10. Professional process design personnel capable of independent design and optimization; for OEM加工, they better understand the original designers' intent and can integrate it into the equipment production, giving it a "soul."
Currently, the integrated equipment market is mixed with both good and bad products, mostly having an extremely poor reputation, with numerous instances of equipment failing to operate normally being commonplace. Numerous failure cases have led to a loss of confidence. While the technology and equipment themselves are simple, the diversity of involved disciplines and industry development characteristics make doing simple things well not easy, and achieving perfection in simple things is even more challenging. "Zhongqiao Box" is dedicated to mechanizing the production of this simple equipment into a refined product, because we know that what is buried underground is not just a piece of equipment, but also humanity's aspiration for a better life.
Zhongqiao Enlightenment is committed to providing reliable OEM solutions for distributors and engineering contractors. We deliver stable and cost-effective wastewater treatment systems for our clients, while ensuring and protecting their privacy. Zhongqiao Box is just the starting point – upon shipment, it can be rebranded with your logo, setting sail immediately for shared value creation.
